OTA Reception Files
Downloadable Files re On-The-Air Reception - by holl_ands

Includes DTV Antenna Specs (and measured Performance), measured Balun Loss, measured RF Splitter Loss & RG-6 Cable Loss Specs.

Also includes ATSC/NTSC Tuner Specs and Preamp Specs, plus a DTV Signal Overload Calculator and a Third Order Intermod Calculator.

UPDATE (24Mar2009): Updated DTV Interference Calculator Rev C.

UPDATE (26Mar2010): Added CECB Features List - mod 26Mar2010.

UPDATE (14Aut2011): Updated DTV Interference Calculator - Rev F.

UPDATE (12Sep2011): Updated DTV Preamp Signal Overload Calculator - Rev L to add VHF specific calculations.

UPDATE (25Sep2011): Updated "Preamp Comparison Chart - Rev A", due to W-G change to HDP-269 Max Input Spec.

UPDATE (13Mar2012): Updated "DTV Preamp Signal Level Overload Calculation - Rev M".
Fixed typo in W-G specs for 19 dB Gain Preamps - 99.4 dBuV vice 89.5 dBuV.  Calculations not affected.

UPDATE (21Nov2012): Added five Spread Sheets (*.xls or *.xlsx) with Raw Data from various 4nec2 runs
that were used to prepare the Antenna Performance Charts used throughout this website.
If marked with one or more X's, the data has either been superseded by an alternative run and/or it
might have an unspecified PROBLEM...so ignore it.

UPDATE (1May2013): In my Modification to solidsignal's Preamp Comparison Chart, corrected AP-2870 Max Input to reflect (29Jan2010) update to Winegard Preamp specs.

UPDATE (10May2013): Added Interior Photos of Winegard AP-8700 and HDP-269 Preamps.

UPDATE (25Jul2013): Updated "DTV Preamp Signal Level Overload Calculation - Rev N" to reflect new W-G LNA200's ASSUMED 20 dB improvement in UHF Max Input compared to AP8700.

UPDATE (20Nov2013): Added Chart showing RS 15-00396 4G_LTE Low Pass Filter Loss.

UPDATE (19Apr2018): Added Charts showing Measured Insertion Loss for various Ferrite and PCB Baluns.

UPDATE (7Feb2019): Added Charts showing Measured Insertion Loss for various FM Band Reject Filters.
Date(s): 3 Feb 2009. Album by holl_ands. 1 - 44 of 44 Total. 17812 Visits.
Start SlideshowTo order prints and photo-products: 1. Select photos. 2. Click Order. 3. Select products.Select images and click to download to your computer
Enlarge Microsoft Excel Spreadsheet 1
enlarge 172KB, 1024x791
XLS1
DTV Antennas Rev E
Compare Manufacturer Specs & Tested Performance


Enlarge Microsoft Excel Spreadsheet 2
enlarge 30KB, 1024x791
XLS2
Belden RG-6 & RG-11 Cable Loss Specs

Enlarge photo 3
enlarge 198KB, 1024x666
3
Belden RG-59, RG-6 & RG-11 Coax Loss Chart

Enlarge Microsoft Excel Spreadsheet 4
enlarge 40KB, 1024x791
XLS4
ATSC & NTSC Tuner Module Specs

Enlarge Microsoft Excel Spreadsheet 5
enlarge 150KB, 1024x791
XLS5
CECB Feature List - mod 26Mar2010.xls

Enlarge Microsoft Excel Spreadsheet 6
enlarge 37KB, 791x1024
XLS6
COMPARE System Noise Figures
With and Without Preamps


Enlarge Microsoft Excel Spreadsheet 7
enlarge 86KB, 1024x791
XLS7
DTV Preamp Signal Overload Calculator - Rev M

Calculate Max Input Signal to Maximize
SFDR (Spurious Free Dynamic Range).


Enlarge Microsoft Excel Spreadsheet 8
enlarge 392KB, 791x1024
XLS8
DTV Interference Calculator - Rev G

Enter up to five channels to see which
channels are affected by (3 channel wide)
Third Order Intermods.

Strong channels also block weak adjacent channels


Enlarge photo 9
enlarge 464KB, 1024x989
9
Preamp Performance Summary
Measurements by Calaveras - posted 28Nov2015

Presumably for Two Strong Input Signals.
Max Signal Input and Output
would need to be DERATED:
3 Signals: -3.6 dB
4 Signals: -5 dB
5 Signals: -6 dB
6 Signals: -7 dB
8 Signals: -8 dB
Ignore signals more than 6 dB below the Strongest.


Enlarge Microsoft Word Document 10
enlarge 95KB, 791x1024
DOC10
Modified www.solidsignal.com Chart Comparing Preamps - RevB

Added columns listing Max Input Signal for
Maximized SFDR (Spurious Free Dynamic Range).

RevA: W-G revised HDP-269 Max Input Spec
from 350,000 to 150,000 uV.

RevB: Changed back to HDP-269 max Input Spec of 350,000 uV and corrected AP-2870 per 110,000 uV vice old spec value of 10,000 uV.


Enlarge Microsoft Excel Spreadsheet 11
enlarge 44KB, 1024x791
XLS11
Old Preamp Specs - Rev B

Enlarge Microsoft Excel Spreadsheet 12
enlarge 3.17MB, 791x1024
XLS12
UHF Antenna 4nec2 Sim Charts RevJ.xls

Enlarge Microsoft Excel Spreadsheet 13
enlarge 1.25MB, 791x1024
XLS13
Hi-VHF Antenna 4nec2 Sim Charts RevI.xls

Enlarge Microsoft Excel Spreadsheet 14
enlarge 2.62MB, 791x1024
XLS14
UHF_HiVHF_STACKED Antenna 4nec2 Sim Charts - RevG.xls

Enlarge Microsoft Excel Spreadsheet 15
enlarge 337KB, 791x1024
XLS15
Winegard YA-1713 4nec2 Sim Charts.xls

Enlarge Microsoft Excel Spreadsheet 16
enlarge 379KB, 791x1024
XLS16
Hi-VHF Yagi vs Zig-Zag Performance Curves - holl_ands RevD.xlsx

Enlarge photo 17
enlarge 0KB, 1024x682
17
Channel Master SPARTAN Preamp Circuit Board

Enlarge photo 18
enlarge 0KB, 1024x682
18
Channel Master SPARTAN Preamp - Reverse

Enlarge photo 19
enlarge 346KB, 1024x857
19
Winegard AP-8700 Preamp
Top of Circuit Board


Enlarge photo 20
enlarge 356KB, 1024x966
20
Winegard AP-8700 Preamp
Bottom of Circuit Board


Enlarge photo 21
enlarge 292KB, 1024x962
21
Winegard HDP-269 Preamp
Top of Circuit Board


Enlarge photo 22
enlarge 288KB, 1024x743
22
Winegard HDP-269 Preamp
Bottom of Circuit Board


Enlarge photo 23
enlarge 197KB, 1024x768
23
Original CM7777 Preamp
Bottom of Circuit Board


Enlarge photo 24
enlarge 243KB, 1024x768
24
Original CM7777 Preamp
Top of Circuit Board


Enlarge photo 25
enlarge 175KB, 1152x608
25
Original CM7777 Preamp
VHF/UHF Selector Switch Detail


Enlarge photo 26
enlarge 192KB, 1152x623
26
PS-0747 Power Insertion Module Schematic
for Original CM7777 and Spartan Preamps

Posted by rabbit73


Enlarge photo 27
enlarge 536KB, 1152x694
27
RS 15-00396 4G_LTE Low Pass Filter Loss
Posted by ADTech, 27Nov2013

Note Significant Loss on Higher Channels,
Do NOT use unless you are SURE you NEED it.


Enlarge Microsoft Excel Spreadsheet 28
enlarge 111KB, 791x1024
XLS28
Balun Loss using TWC-SD Freqs - Rev B

Enlarge PDF 29
enlarge 76KB, 1024x791
PDF29
Philips Ferrite Outdoor Balun Loss:
UHF: 0.5 to 0.9 dB (470-698 MHz)
Hi-VHF: Under 0.6 dB, Lo-VHF: Under 0.7 dB

Measurements by Johnrmckee (18Feb2009)


Enlarge photo 30
enlarge 21KB, 1152x691
30
Ferrite Balun Insertion Loss
Used in older A-D 91XG Antennas
Loss for TWO Back-to-Back Units:
1.15 to 1.7 dB each (470-698 MHz)

Measurements by Calaveras, Aug2019


Enlarge photo 31
enlarge 11KB, 1024x768
31
Ferrite Balun Loss Comparisons
Loss for TWO Back-to-Back Units:
CM94444 Outdoor Balun Loss:
UHF: ~1.2 dB
Hi-VHF: ~1.0 dB
Lo-VHF: ~0.4 dB

Measurements by ADTech


Enlarge photo 32
enlarge 593KB, 1024x796
32
UP2A PCB Balun Loss
Used in A-D UHF C2 and C4 Antennas
Loss for TWO Back-to-Back Units:
0.6 to 0.9 dB each (470-698 MHz)

Measurements by ADTech


Enlarge photo 33
enlarge 10KB, 1024x768
33
UP2A-6 PCB Balun Loss Variation
Used in A-D Hi-VHF C5 Antenna
Loss for TWO Back-to-Back Units

Measurements by ADTech


Enlarge PDF 34
enlarge 149KB, 791x1024
PDF34
FM Band Reject Filter
Tin-Lee CH7 CH.FM 40 FM Bandstop Frequency Response


Enlarge photo 35
enlarge 16KB, 1024x704
35
FM Band Reject Filter
MCM 33-334 FM Band (88-108 MHz) Loss

Measurements by tripelo
on 12 separate samples


Enlarge photo 36
enlarge 12KB, 1024x706
36
FM Band Reject Filter
MCM 33-334 Hi-VHF Band (174-216 MHz) Loss

Measurements by tripelo


Enlarge photo 37
enlarge 8KB, 1024x663
37
FM Band Reject Filter
MCM 33-334 Hi-VHF Band (174-216 MHz) Return Loss

Measurements by tripelo


Enlarge photo 38
enlarge 612KB, 1152x694
38
FM Band Reject Filter
To allow Ch6 Reception, Radio Shack 15-024 has
minimal attenuation on low FM Freqs

Measurement by ADTech


Enlarge photo 39
enlarge 10KB, 1024x768
39
FM Band Reject Filters
Antennas Direct vs (old) Radio Shack 15-377
To allow Ch6 Reception, R-S 15-677 has minimal
attenuation on low FM Freqs [15-377 is typo]


Enlarge photo 40
enlarge 13KB, 1024x768
40
Freq. Response for four VHF/UHF Diplexers
Center is 100 MHz with 10 MHz/Div
Zero Loss is middle with 10 dB/Div
So FM Band is ~1/2 division on either side of Center

Measurements by ADTech


Enlarge PDF 41
enlarge 18KB, 1024x791
PDF41
Digital Planet 2-Port RF Splitter/Combiner
Loss Measurements
Using Cable Box Diagnostic Display
as a Signal Level "Meter" [+/- 0.5 dB]
By holl_ands, Nov2004


Enlarge Microsoft Excel Spreadsheet 42
enlarge 81KB, 1024x791
XLS42
2 + 4-Port RF Splitter/Combiner Loss - Rev B
By holl_ands, Jan2005


Enlarge photo 43
enlarge 12KB, 1024x751
43

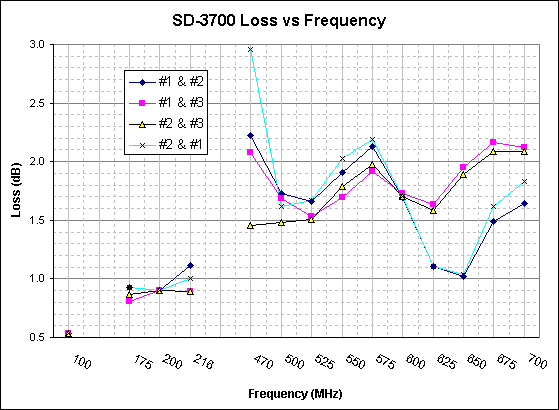

W-G SD-3700 2-Way Splitter/Combiner Loss
By Tripelo, Nov2011


Enlarge photo 44
enlarge 80KB, 1152x345
44
RF Splitter Loss, Isolation & Return Loss
By ADTech, Jul2014
