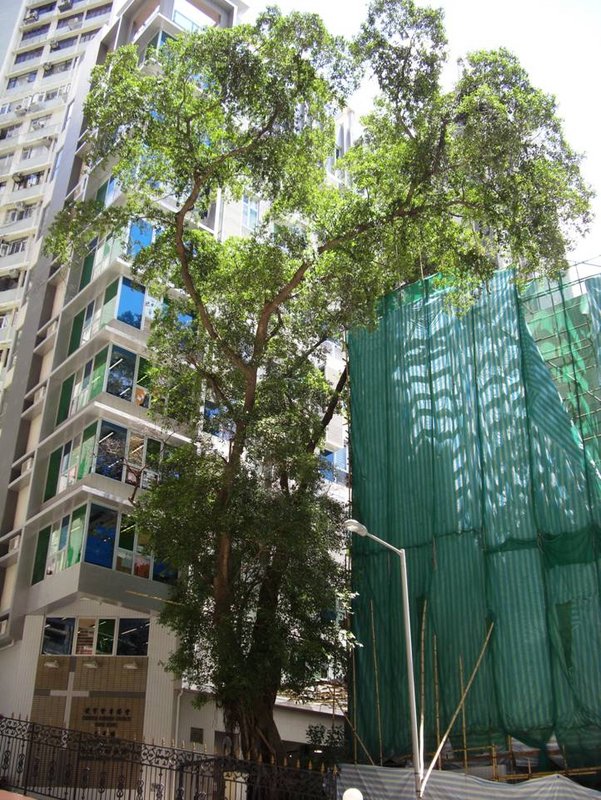

Hong Kong Rhenish Church; Hong Kong Island Bonham Road Chinese Banyan(榕樹,細葉榕)
Pictures property of Don, Lynne & Jon Picker
Photo 1 of 40, Picture1.jpg, 161KB, 601x800, 797 Hits
Other Sizes: Small Medium Large Original X-Large
Public Gallery>Don Picker>Nature and Landscapes>
Hong Kong Tree Risk Assessment
After the failure of a large mature Ficus microcarpa onto the intersection at the northeast corner of Bonham Road the Hong Kong Rhenish Church invited ATP to provide a Tree Risk Assessment on the last remaining Chinese Banyan   (榕樹 , 細葉榕)near the churches main entrance.
July 2008Showing 1-40 of 4015187 visitsAlbum by Don and Jon PickerPhotos by Don and Jon Picker
Enlarge photo 1enlarge 161KB, 601x800
Hong Kong Rhenish Church; Hong Kong Island Bonham Road Chinese Banyan(榕樹,細葉榕)
Enlarge photo 2enlarge 189KB, 600x800
Ficus microcarpa Chinese Banyan
(榕樹 , 細葉榕 )

Enlarge photo 3enlarge 180KB, 800x600
The remaining crown section has healthy dark green foliage and appears in good condition.
Enlarge photo 4enlarge 121KB, 600x800
However a closer investigation by a visual tree assessment (VTA) reveals many problems.
Enlarge photo 5enlarge 138KB, 800x600
The tree has experienced many events of major construction.
Enlarge photo 6enlarge 146KB, 800x600
Amendments to roots, soil and surrounding site.
Enlarge photo 7enlarge 137KB, 600x800
Regular abuse during construction projects etc. as area was developed.
Enlarge photo 8enlarge 173KB, 800x659
Roots cut & cement poured.
Enlarge photo 9enlarge 116KB, 800x600
Roots cut on both sides: cut to wall & edge.
Enlarge photo 10enlarge 144KB, 600x800
Climbing the tree also reveals many problems.
Enlarge photo 11enlarge 169KB, 746x800
Enlarge photo 12enlarge 148KB, 800x693
Decay, discolor & cracks.
Enlarge photo 13enlarge 162KB, 800x791
Enlarge photo 14enlarge 158KB, 800x600
Very large incorrect cuts leaving a major scaffold branch decaying in the center of tree.
Enlarge photo 15enlarge 152KB, 800x661
Continues to rot out & produce fungus down and into the tree trunk and half the one side of the entire tree.
Enlarge photo 16enlarge 143KB, 600x800
Large scaffold branch section over drive entrance also has large dead crown portions.
Enlarge photo 17enlarge 114KB, 800x491
Dead limb grows towards building.
Enlarge photo 18enlarge 130KB, 800x646
Very large dead stem is an obvious hazard here.
Enlarge photo 19enlarge 216KB, 800x686
This very large dead stem hangs directly over entrance.
Enlarge photo 20enlarge 182KB, 712x800
Decay progressed back into wood.
Enlarge photo 21enlarge 135KB, 800x469
Location of dead stem dangerous.
Enlarge photo 22enlarge 170KB, 800x600
Previously cut incorrectly to blunt stubs.
Enlarge photo 23enlarge 189KB, 800x600
Hole in upper branch also facing the main building.
Enlarge photo 24enlarge 121KB, 800x636
Hole and poor structure in upper branch also over entrance and facing widows.
Enlarge photo 25enlarge 165KB, 800x600
Termites found throughout decayed wood.
Enlarge photo 26enlarge 129KB, 800x600
Removal of cement reveals a decaying trunk.
Enlarge photo 27enlarge 119KB, 800x601
Many termites throughout the decayed sections and cavities of the tree.
Enlarge photo 28enlarge 98KB, 800x600
Enlarge photo 29enlarge 128KB, 800x600
Termite control hired.
Enlarge photo 30enlarge 142KB, 800x600
Termite control broke open the cement cover.
Enlarge photo 31enlarge 150KB, 800x537
Removal of cement covering reveals 25cm rotted center core of 45cm trunk previously cut down. Likely other construction project.
Enlarge photo 32enlarge 181KB, 800x751
Wood decayed 1.5 meters under main trunk of remaining tree section: no heartwood in center of main trunk, hole almost 2 meters under tree center.
Enlarge photo 33enlarge 149KB, 800x600
Additional dead parts directly over the public walkway, notice people walking below the dead branches.
Enlarge photo 34enlarge 120KB, 800x600
High traffic area presents many risks.
Enlarge photo 35enlarge 127KB, 800x600
Although many would like to save every tree considering the location where many people are always located and given the conditions of the tree a high level of risk is rated to this tree in a series of measurements.
Enlarge photo 36enlarge 140KB, 578x800
Local environmental conditions present many challenges for tree survival.
Enlarge photo 37enlarge 152KB, 600x800
Conclusions:
Consider tree condition,tree species, tree location, size of part that could fail and targets
rating... Rated as 10 Risk on level of 3 to 12 for hazard level.

Enlarge photo 38enlarge 146KB, 800x600
The sad results of progress and lack of knowledge and awareness of tree requirements for preservation.
Enlarge photo 39enlarge 606KB, 800x600
Contact Picker or other ATP Ltd. Arborist Consultants at donpicker@atptree.com or call at (852) 9124-8291, Hong Kong S.A.R., China; donpickertreeconsulting@gmail.com
Enlarge photo 40enlarge 173KB, 601x800
Arborist's impression of original tree form prior to construction events and cutting... as much as 40+% of the original tree could have been lost.
