The Marshall JMP-1 Preamp Excellent+

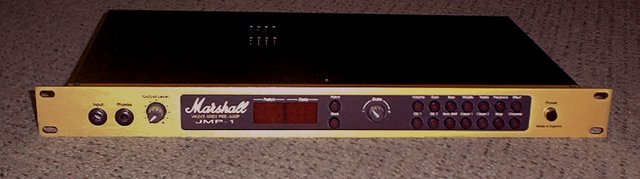

Excellent+ The Marshall JMP-1 Preamp could be the best preamp on the market. It has no weak points, never stuffs up and works for all kinds of music ,as long as you put it with a suitable power amp and cabinet. This one is used, but there isn't a mark, or scratch on it. It was never n a rack so, there is no "Rack-Rash" either
uses a standard footswitch(not included) to select the four channels: o Clean 1: Warm o Clean 2: Bright o Overdrive 1: Classic o Overdrive 2: Modern Tone controls include Volume, Gain, Middle, Bass and Presence But this unit really comes into its own with a MIDI footswitch which you can use to access up to 100 programmable patches and also switch effects on another MIDI controlled effects unit which can be placed in the effects loop. It also supports stereo effects. It also has speaker emulated outputs for recording or direct PA use. It mixes digital controlled circuitry to save prests with AX7 tubes in the audio lines.
This preamp is very versatile and can be customized to equally suit classic tones or modern hi-gain sounds. The clean sounds are very warm too as it is a TUBE preamp.
The following was taken from the Marshall website:
“The Marshall JMP01 Preamp was designed by a team of guitarists who think exactly as you do. This great sounding, 1 rack space, easy to use and program, 4-channel preamp offers instant recall of your 100 favorite settings.
The JMP-1's tube driven heart (2xECC83) drives pure tone into each of its four uniquely voiced channels - Clean 1, Clean 2, OD1 and OD2:
Clean 1 is perfect for warm full-bodied chords, fat clean lead passages and jazz tones.
Clean 2 has the glassy edge of a JTM45 for those bright, jangly tones.
OD1 - this channel's smouldering power will take you from the molten gold of a Super Lead Plexi, to searing metal and all points in-between.
OD2 - tightly focused, high gain is served up here by the truckload. Modern and aggressive, yet fluid and toneful. This channel has all the distortion and sustain you'll ever need.
Features
Valve (2 x 12AX7) MIDI Preamp
4 modes:
o Clean 1: Warm
o Clean 2: Bright
o Overdrive 1: Classic
o Overdrive 2: Modern
Tone controls include Volume, Gain, Middle, Bass and Presence
100 programmable patches
Marshall’s critically acclaimed Speaker Emulated outputs
Stereo FX loop with Level and Mix controls
MIDI Mapping with In, Thru and Out
Bass Shift for adding extra frequencies to the low end
Each channel includes the following programmable controls; Volume, Gain, Bass, Middle, Treble and Presence, plus a Bass Shift option which re-shapes the low-end character of each channel. Its stereo, Parallel FX loop is also 100% programmable and has level selection, ensuring it is totally compatible with any effects device. Program recall is instant either from the front panel, via the optional Marshall 4-way footswitch (the MPM4E) or via MIDI. Talking of MIDI, the JMP-1 has MIDI IN, OUT and THRU connections, a mapping facility and MIDI channel selection - ensuring it will fit seamlessly into any rack set-up. In addition to the standard Left (L) and Right (R) Outputs, the JMP-1 also features L & R Speaker Emulated Outputs, the remarkable realism of which have received much critical praise. This facility not only presents your soundman or engineer with a totally controllable direct stereo signal, it also makes home or studio recording simple. With a valve MIDI preamp as easy to use and as flexible as the JMP-1, the only limit to your creativity is your own imagination.
Marshall Rack Gear
Marshall and MIDI? To the many rack-addicted axemen out there, it's a marriage made in heaven! By successfully wedding the world famous Marshall tube tone with guitarist friendly MIDI technology, the JMP-1 has firmly established itself as the benchmark in professional, rack preamps. This said, the preamp is only half the story, equally as important in the tone creation chain is, of course, the power amplifier. As we all know, nothing beats the musical roar of a British valve power amp - and nothing roars with more toneful power than a Marshall.
Marshall's expertise in making full use of the 3-D tonality offered by tubes has led to their tube-driven power amps becoming revered by musicians the world over. As a result, the models in Marshall's tube power amp line will breathe new life into the sound of your rack.
Technical Description
OD-1: Classic Overdrive Channel
OD2: Modern Hi-Gain Channel
Clean 1: Warm, Clean Channel
Clean 2: Bright, Clean Channel
Bass Shift
Marshall EQ Network
Stereo FX Loop with Level & Mix Control
MIDI Mapping
100 Patch Locations
Normal & Speaker Emulated Outputs
Dimensions: 1U Rack, 260mm Depth (approx. 10.2 in)
Weight: 4.5 Kg (approx. 10 lbs.)
4 way LED Footcontroller (not supplied): MPM4E
Preamp Tubes: 2x ECC83
MIDI In, Out & Thru” |
Date(s): April 19, 2004. Album by Daniel Wollock. Photos by Daniel Wollock. 1 - 4 of 4 Total. 880 Visits. |
|
