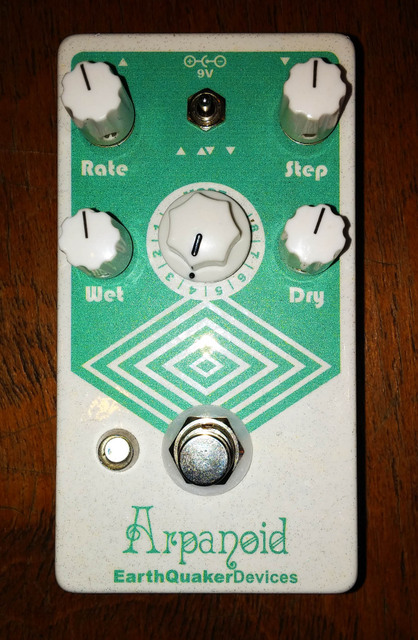

Earthquaker Devices Arpanoid
Earthquaker Devices Arpanoid
From Earthquaker:
The first dedicated compact polyphonic pitch arpeggiator effect pedal for electrical guitar! With 8 intuitive and expandable modes, the Arpanoid will work on complex chords as well as single notes in any key. The modes range from one octave down through the root, root through one octave up, one octave down through one octave up and random mode in both major and minor keys. The Step control selects how many notes there are in the sequence, which determines the overall feel and timing of the cycle. The Rate adjusts the speed of the cycle from a slow climb through a fast glide, the center toggle switch changes the direction of the cycle from up, down or up/down and the Wet and Dry controls adjust the levels and the mix. All analog dry signal, true bypass and handmade one at a time in Akron Ohio.
Features:
• The first dedicated polyphonic pitch arpeggiator for electrical guitar!
• 8 Intuitive programs with control over speed, direction and steps
• Adjustable volume for wet and dry signal
• 9v Operation
• Small footprint, measures 4 5/8″ x 2 1/2″ x 2.25″. Top mounted jacks.
• Hand made one at a time in Akron, Ohio.
Controls
Wet- Level control for the effect signal. Unity is around noon.
Dry- Level control for the dry signal. Unity is around noon.
Rate- Adjusts the speed of the sequence.
Step- Selects how many notes there are in the sequence which determines the overall feel and timing.
Toggle Switch- Controls the direction of the sequence. All the way left is up, the sequence will continually repeat going up. In the middle is up/down, the sequence will continually repeat going up then back down. All the way right is down, the signal will continually repeat going down.
Mode: 8-position selector switch to choose the octave and key:
1: Major: -1 octave to root.
2: Major: root to +1 octave.
3: Major: -1 octave through +1
4: Major: Random pattern
5: Minor: -1 octave to root.
6: Minor: root to +1 octave.
7: Minor: -1 octave through +1
8: Minor: Random pattern Transforms what you play into an adjustable ascending or descending scale
8 Intuitive and expandable modes
All analog dry signal
All digital wet signal
True-bypass switching |
