AER Alpha
AER Alpha Acoustic Guitar Amplifier
This is a used AER Alpha Acoustic Guitar Amplifier. It is in excellent functioning condition and it’s pretty clean. The original speaker has been replaced with an equivalent speaker. The four screws holding down the grill do not look original. The front foam plate is not glued down and can be easily removed to show the metal grill beneath. There is no carrying case included.
It is a single channel, 40 Watt acoustic guitar amp - stunning AER sound quality. Small and lightweight in design, the Alpha is easily powerful enough for standalone use in smaller venues, and the DI and line outputs enable connection to a P.A. system for larger stages.
The power cable is included with this amp.
Technical Specifications:
* Input one: XLR Combi jack
* Line: unbalanced, 1 MEG, mic: balanced, 600 Ohm, Voice filter 300 Hz
* Input two: line: unbalanced, 2.2 MEG, pad: -10dBV, eff.return: -10dBV/10k
* Outputs: line: 0dBV, DI: -20dBV, send: -10dBV
* Foot switch tip: built in effect, ring: external effect, sleeve: ground
* EQ: bass: +/- 8dB/100 Hz
middle: +/- 3dB/550 Hz
treble: +/- 11 dB/10 kHz
* Analog signal processor: limiter, subsonic filter and enhancer
* Effect: digital reverb
* power amp: power consumption - 220-240 V / 50-60Hz / 55 VA (110V / 50-60Hz)
* Rating: 40 Watt / 4 ohm RMS
* Mains Fuse: 1 A slow
* Speaker: 8" twin-cone speaker-system (96 dB 1w/1m, freq. range 60Hz-18kHz)
* Cabinet: 0.47" (12 mm) birch plywood
* Dimension: 10.24' (260 mm) high, 10.43' (265 mm) wide, 9.25' (235 mm) deep
* weight: 6,5kg !!
* Finish: water based acrylic, black spatter finish
Inputs Channel 1: combined XLR / 1/4" jack socket, mic / line level with 24V phantom power
Channel 2: 1/4" jack socket, piezo / line level

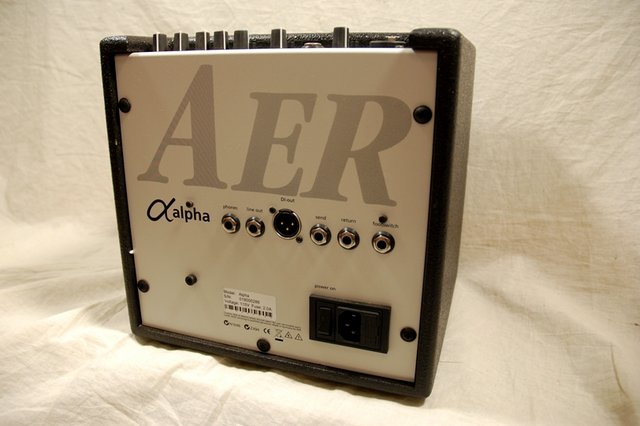

Outputs DI-out, line-out, headphones-out, tuner-out, effects loop
Controls Channel 1: mic / line input selector, gain
Channel 2: piezo / line input selector, gain, 'colour'
Overall: 3 band eq, effects return*, master volume
Technical Spec 40W / 4 ohm RMS output, 20Hz-20kHz frequency range, 8" twin cone speaker system
Weight 6.5 kg / 14 1/2 lbs
Dimensions 330 x 260 x 235mm
13" x 10 1/4" x 9 1/4"
*Effects Built in AER reverb / delay unit, effects loop to attach an external effects unit |
