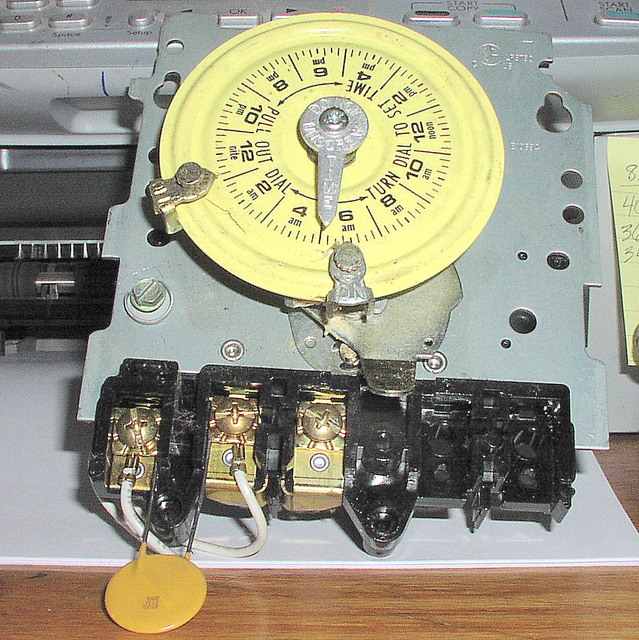

This is one of our timers on the property. The wire in the motor coil is as fine as your hair and a burst of line voltage will blow it out like a fuse. The yellow disc that looks like a ceramic capacitor is actually an mov and rated at 130 volts. So it will take the excess spike in line voltage and preserve the clock motor. An " MOV " is a Metalic Oxide Varistor and made from aluminum oxide and they work well.

	sec delay
This is one of our timers on the property. The wire in the motor coil is as fine as your hair and a burst of line voltage will blow it out like a fuse. The yellow disc that looks like a ceramic capacitor is actually an mov and rated at 130 volts. So it will take the excess spike in line voltage and preserve the clock motor. An " MOV " is a Metalic Oxide Varistor and made from aluminum oxide and they work well. Add Comment (0 total)
