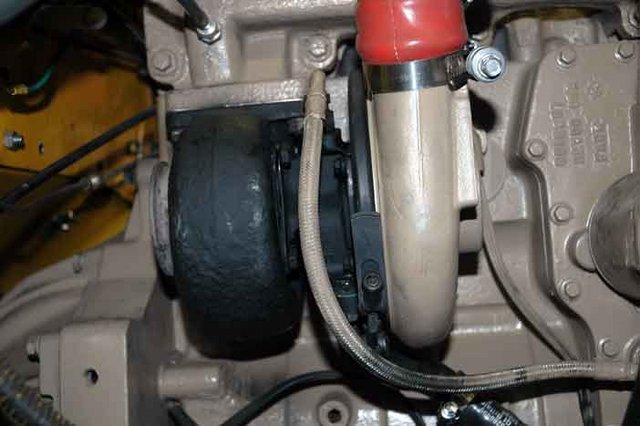

Installed on Engine. Prior to attaching the High Pressure oil line, inject 2 cc's of engine oil into the High Pressure fitting on the Turbo. Then Attach high Pressure oil line. Buy a new Turbo Oil Return Hose. Cummins Part Number 3286499. This is special hose to handle the high temperature oil discharged from the Turbo back to the Crankcase. You have just saved yourself about $850.00 by rebuilding your Turbo rather than buying a rebuilt from 'The Chrome C'. It took me roughly 3 hours to totally strip, clean and inspect all parts and then paint. Actually assembly took 2 hrs 15 minutes. Finally, with your fingers rotate the compressor wheel to be sure it runs smooth and does not hit the compressor housing. If it feels good, give her a few good spins.
