Photo 22 of 41, H1C Turbo Rebuild

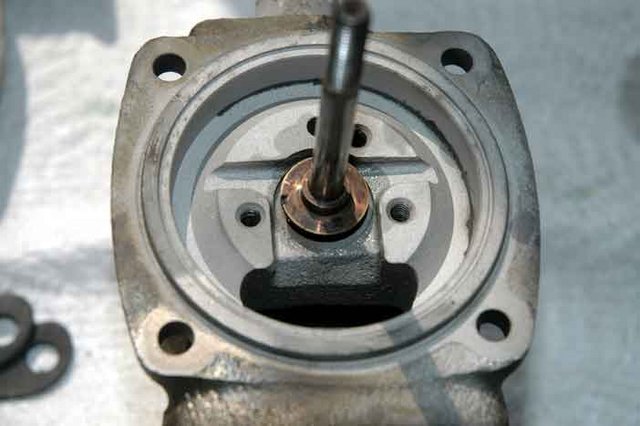

From the heat shield side, insert the turbine shaft. ALIGN THE PISTON RING SEAL SO THE GAP IS 180 DEGREES FROM THE OIL DRAIN HOLE !!! SLowly twisting the shaft and pushing in on the piston ring will allow it to move into position. Lubricate the shaft with clean engine oil. Then place the thrust collar on the shaft. Align the balance mark on the thrust collar with that on the shaft.

	sec delay
From the heat shield side, insert the turbine shaft. ALIGN THE PISTON RING SEAL SO THE GAP IS 180 DEGREES FROM THE OIL DRAIN HOLE !!! SLowly twisting the shaft and pushing in on the piston ring will allow it to move into position. Lubricate the shaft with clean engine oil. Then place the thrust collar on the shaft. Align the balance mark on the thrust collar with that on the shaft.
Photo 22 of 41, 19.jpg, 46KB, 640x426, 797 Hits Other Sizes: Medium
