Photo 16 of 41, H1C Turbo Rebuild

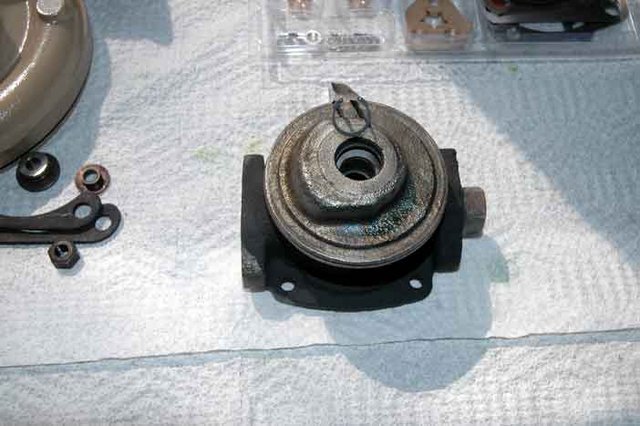

In the top of the bearing housing, you will see two groves for the Circlips. The Circlips have one edge BEVELLED. The bevelled edge MUST face the oil bearing.
Install the lower Cerclip. Then insert one oil bearing, then install the upper Circlip. Then turn the bearing housing over and repeat the process for the lower oil bearing.

	sec delay
In the top of the bearing housing, you will see two groves for the Circlips. The Circlips have one edge BEVELLED. The bevelled edge MUST face the oil bearing. Install the lower Cerclip. Then insert one oil bearing, then install the upper Circlip. Then turn the bearing housing over and repeat the process for the lower oil bearing.
