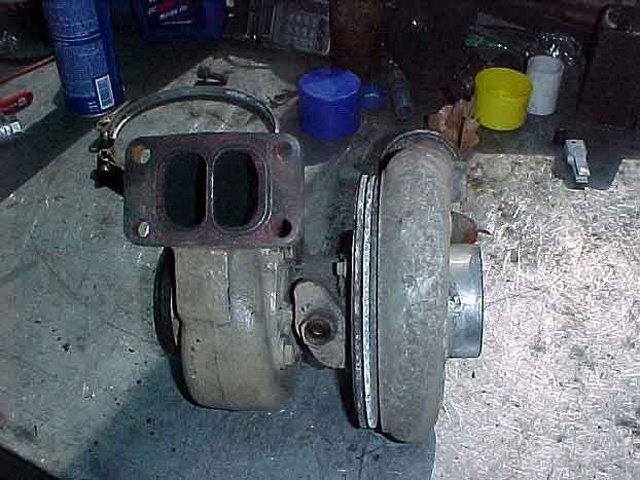

The next 3 pictures are the turbo after removal from the engine. Follow the instructions given in the Holset manual packaged with the rebuild kit for disassembly. Be sure to index mark parts as described in the parts rebuild manual. In most cases the CHRA ( Center Housing Rotating Assembly will be heavily rusted to the turbine housing. I had the entire turbo soaking in my parts cleaner for 2 weeks, it did nothing. Serious heat finally broke the rusted joint.
