Photo 109 of 159, Dodge Power Giant W300

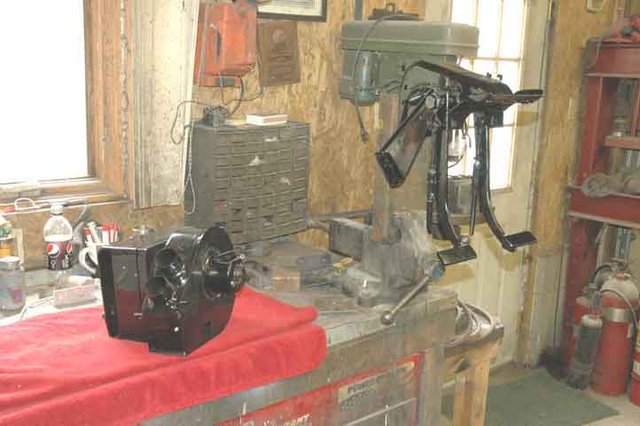

Heater is rebuilt. New Brushes in motor and a new heater core.

Starting to fab the Hydroboost mount to Dodge PG Hanging Pedals
Hydroboost is Chevy 1991 V3500. NAPA 52-7307

Brake Master is Chevy 1991 V3500 NAPA 39435 1 & 5/16" bore JD8 Option

Following parts are all from Chevy/GM, Push rod 377397
Spring P15581525, Spring 471736
Baffle 360859

	sec delay
Oct-1-2009 Heater is rebuilt. New Brushes in motor and a new heater core. Starting to fab the Hydroboost mount to Dodge PG Hanging Pedals Hydroboost is Chevy 1991 V3500. NAPA 52-7307 Brake Master is Chevy 1991 V3500 NAPA 39435 1 & 5/16" bore JD8 Option Following parts are all from Chevy/GM, Push rod 377397 Spring P15581525, Spring 471736 Baffle 360859
