Photo 2 of 7, NV-4500 Slave Fitting Modification

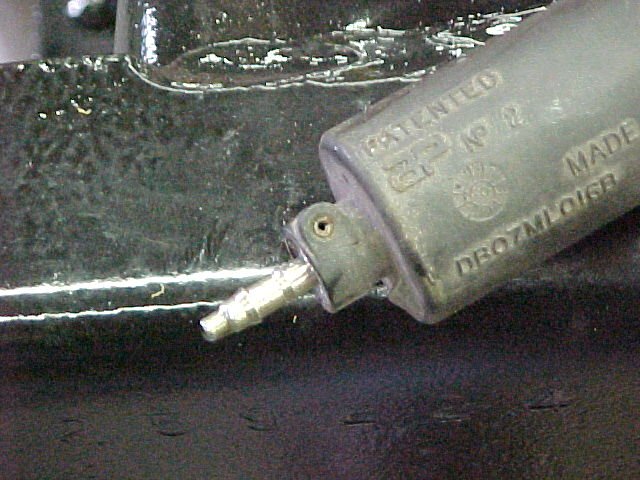

Picture 2 shows the hose removed and the barbed portion of the special fitting exposed. Note at the junction of the special fitting and the slave cylinder, at 12 o’clock is a roll pin. This pin must be tapped out with a drift. This releases the fitting and it will then pull out

	sec delay
Picture 2 shows the hose removed and the barbed portion of the special fitting exposed. Note at the junction of the special fitting and the slave cylinder, at 12 o’clock is a roll pin. This pin must be tapped out with a drift. This releases the fitting and it will then pull out
