Photo 43 of 56, LU4 Winch

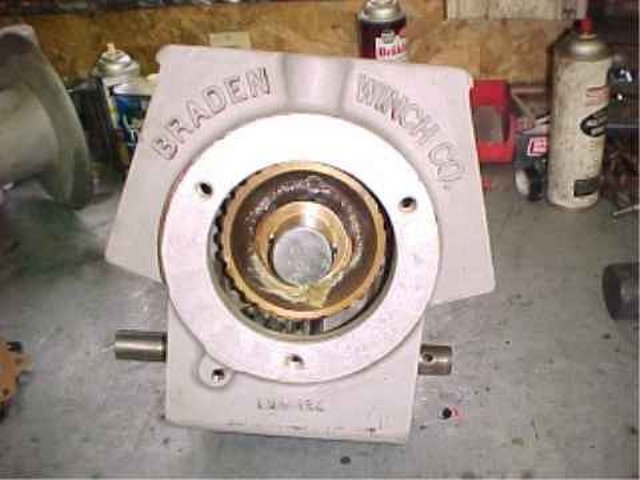

Lightly oil the inside of the main shaft bushing and slide the main shaft/bronze bushing in place, then insert the worm drive shaft.
Be sure that the end drilled for the shear pin is facing aft and the keyed end facing forward.

	sec delay
Lightly oil the inside of the main shaft bushing and slide the main shaft/bronze bushing in place, then insert the worm drive shaft. Be sure that the end drilled for the shear pin is facing aft and the keyed end facing forward.
