13. Get a stainless steel hose clamp. Put the clamp around the bracket, with the 2 pieces of insulating/shock material and then the brush, and tighten it down. Watch the contact of the brush with the copper jacket. Align the brush for full contact with the copper jacket and tighten down. Be careful not to tighten to much and bind the brush.

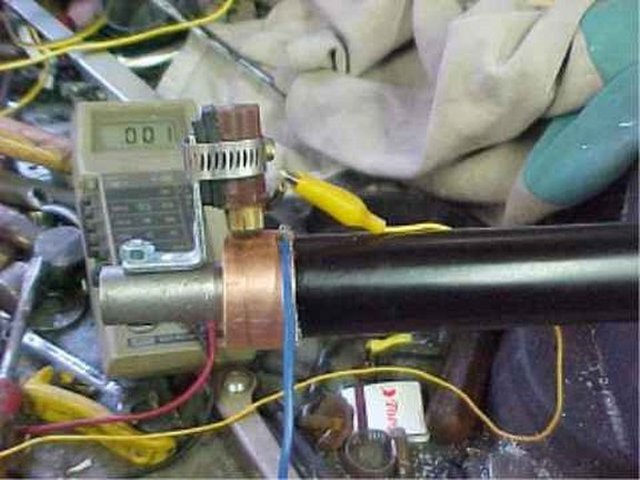

14. Your fabrication is now done. Its time to test. Take a ohm meter or a test light and connect one end to the wire coming from the brush (in the picture its the yellow clip). Connect the other end to the wire coming off the copper jacket ( in the picture its blue).
15. The ohm meter MUST show a short, the test light must light. If it does turn the steering wheel and be sure you have contact through its entire rotation. Go back and forth with the wheel to check it out. If you have good contact and show a short or light the test light, you HAVE DONE WELL. You are now ready to install.
14. Your fabrication is now done. Its time to test. Take a ohm meter or a test light and connect one end to the wire coming from the brush (in the picture its the yellow clip). Connect the other end to the wire coming off the copper jacket ( in the picture its blue).
15. The ohm meter MUST show a short, the test light must light. If it does turn the steering wheel and be sure you have contact through its entire rotation. Go back and forth with the wheel to check it out. If you have good contact and show a short or light the test light, you HAVE DONE WELL. You are now ready to install.
