HiVHF 13-El Offset-Crossed FD - 2TL=HWL Hi-VHF 13-Element Cross Yagi with Quarter-Wavelength Offset-Crossed Folding Dipoles (FD) and two Half-Wavelength long Transmission Lines, analyzed using 4nec2. Hi-VHF 13-El. Yagi was rescaled from a UHF Yagi FULL Hi-VHF BAND design posted by kgb: http://imageevent.com/holl_ands/yagis/hivhf13elyagikgb This antenna provided an excellent 20+ dB of Cross-Polariztion Loss across Hi-VHF Band Date(s): 6 Feb 2012. Album by holl_ands. 1 - 25 of 25 Total. 1034 Visits.

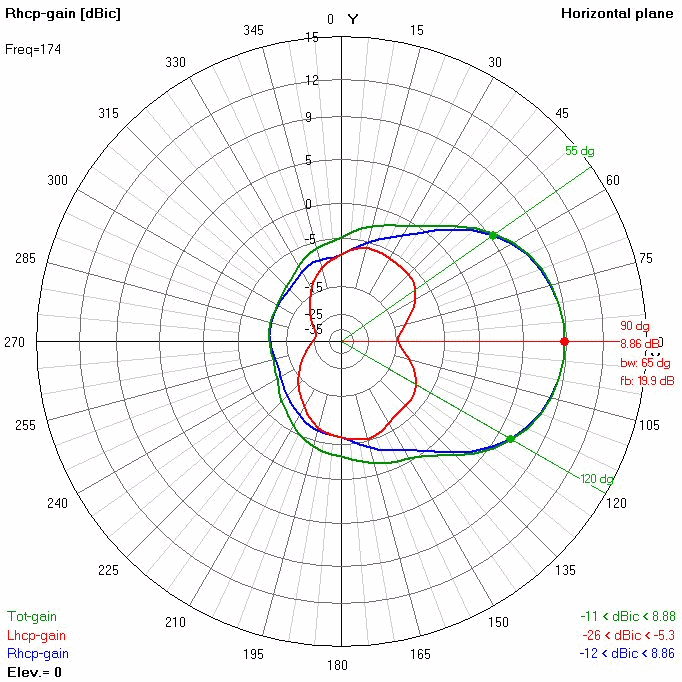

enlarge 90KB, 1024x906 1 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL 3D View enlarge 250KB, 1024x974 2 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Front View [1 big box = 5-inches] enlarge 146KB, 1152x464 3 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Side View [1 big box = 12.5-inches] enlarge 162KB, 1024x686 4 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Hi-VHF TOTAL Raw Gain = 9-12 dBi enlarge 181KB, 1024x686 5 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Hi-VHF SWR (300-ohms) Under 3.0 enlarge 156KB, 1024x686 6 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Hi-VHF Impedance enlarge 311KB, 1024x1024 7 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Azimuthal Patterns at 174 MHz enlarge 309KB, 1024x1024 8 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Azimuthal Patterns at 180 MHz enlarge 309KB, 1024x1024 9 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Azimuthal Patterns at 186 MHz enlarge 309KB, 1024x1024 10 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Azimuthal Patterns at 192 MHz enlarge 311KB, 1024x1024 11 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Azimuthal Patterns at 198 MHz enlarge 312KB, 1024x1024 12 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Azimuthal Patterns at 204 MHz enlarge 313KB, 1024x1024 13 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Azimuthal Patterns at 210 MHz enlarge 316KB, 1024x1024 14 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Azimuthal Patterns at 216 MHz enlarge 144KB, 1152x468 15 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Top View [1 big box = 12.5-inches] enlarge 309KB, 1024x1024 16 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Circular Polarization Patterns at 174 MHz enlarge 307KB, 1024x1024 17 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Circular Polarization Patterns at 180 MHz enlarge 307KB, 1024x1024 18 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Circular Polarization Patterns at 186 MHz enlarge 307KB, 1024x1024 19 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Circular Polarization Patterns at 192 MHz enlarge 309KB, 1024x1024 20 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Circular Polarization Patterns at 198 MHz enlarge 310KB, 1024x1024 21 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Circular Polarization Patterns at 204 MHz enlarge 311KB, 1024x1024 22 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Circular Polarization Patterns at 204 MHz enlarge 314KB, 1024x1024 23 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Circular Polarization Patterns at 216 MHz enlarge 220KB, 1024x1024 24 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL Circular Polarization Patterns - Ani-Gif enlarge 37KB, 791x1024 25 Hi-VHF 13-El Offset-Crossed FD - 2TL=HWL 4nec2 File (Metric converted to Inches)
