HiVHF 8-El Crossed Dipoles Yagi - TL=QWL Hi-VHF 8-Element Yagi with Crossed-Dipoles [Coincident, NOT Offset] interconnected by a Transmission Line that is a Quarter-Wavelength long. Date(s): 4 Feb 2012. Album by holl_ands. 1 - 26 of 26 Total. 1455 Visits.

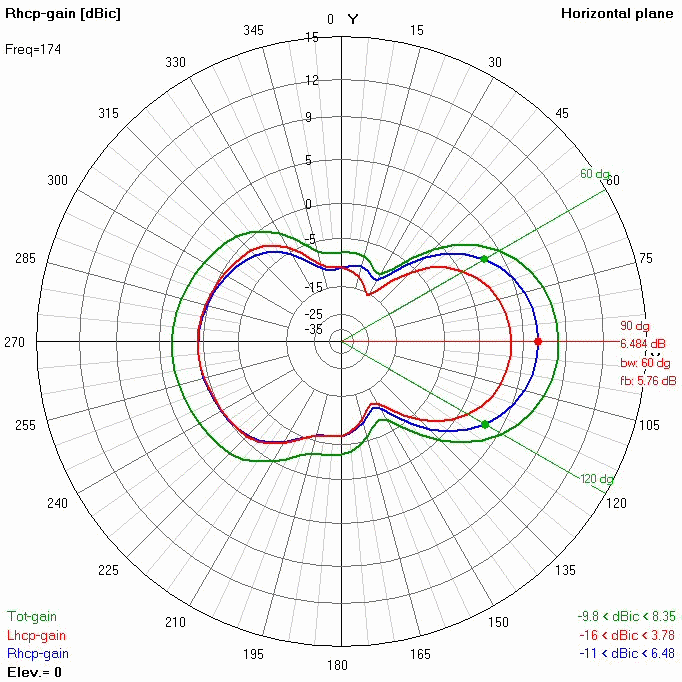

enlarge 66KB, 1024x966 1 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL 3D View enlarge 276KB, 1024x978 2 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Front View [1 big box = 2.5-inches] enlarge 121KB, 1152x454 3 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Top View [1 big box = 12.5-inches] enlarge 157KB, 1024x686 4 HiVHF 8-El Crossed Dipoles Yagi - TL=QWL Hi-VHF TOTAL Raw Gain enlarge 188KB, 1024x686 5 HiVHF 8-El Crossed Dipoles Yagi - TL=QWL Hi-VHF SWR (75-ohms) enlarge 160KB, 1024x686 6 HiVHF 8-El Crossed Dipoles Yagi - TL=QWL Hi-VHF Impedance enlarge 316KB, 1024x1024 7 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Azimuthal Patterns at 174 MHz enlarge 317KB, 1024x1024 8 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Azimuthal Patterns at 180 MHz enlarge 318KB, 1024x1024 9 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Azimuthal Patterns at 186 MHz enlarge 317KB, 1024x1024 10 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Azimuthal Patterns at 192 MHz enlarge 320KB, 1024x1024 11 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Azimuthal Patterns at 198 MHz enlarge 305KB, 1024x1024 12 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Azimuthal Patterns at 204 MHz enlarge 312KB, 1024x1024 13 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Azimuthal Patterns at 210 MHz enlarge 314KB, 1024x1024 14 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Azimuthal Patterns at 216 MHz enlarge 128KB, 1152x455 15 HiVHF 8-El Crossed Dipoles Yagi - TL=QWL Side View [1 big box = 12.5-inches] enlarge 315KB, 1024x1024 16 enlarge 320KB, 1024x1024 17 enlarge 318KB, 1024x1024 18 enlarge 319KB, 1024x1024 19 enlarge 322KB, 1024x1024 20 enlarge 309KB, 1024x1024 21 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Circular Polarization Patterns at 204 MHz enlarge 300KB, 1024x1024 22 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Circular Polarization Patterns at 210 MHz enlarge 302KB, 1024x1024 23 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Circular Polarization Patterns at 216 MHz enlarge 218KB, 1024x1024 24 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL Circular Polarization Patterns 0 Ani-Gif enlarge 34KB, 791x1024 25 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL 4nec2 File enlarge 75KB, 997x1024 26 Hi-VHF 8-El Crossed Dipoles Yagi - TL=QWL 3D View - REAR DETAIL 75/75 1:1 Coax Balun connects to middle of Rear Dipole. Dipoles are interconnected by a Quarter-Wavelength long Transmission Line (Coax) of 93-ohms impedance.
