holl_ands | Home > Circular Polarized incl. Rabbit-Ears > Crossed Yagis > Browse:HiVHF 8-El Crossed Dipole-Pair YagiHiVHF 8-El Crossed FD's Yagi - TL=QWL HiVHF 8-El Crossed Dipoles Yagi - TL=QWL
HiVHF 8-El Crossed Dipole-Pair Yagi Hi-VHF 8-Element Cross Yagi with Right Hand Circular Polarized (RHCP) Dipole-Pair active driver elements analyzed using 4nec2.  Dimensions of K6STI's  Dipole-Pair (w/o Yagi) were optimized using nikiml's optimization scripts, presuming QICT (Quarter-Inch Copper Tube) element size. Although Gain, SWR & RHCP were very good across Ch7-10, Cross Polarization Loss was only good on a limited range of frequencies. Since the K7MEM designs are NOT optimized for wide-band use, usable Gain is only realized on Ch7-10, with reduced F/B and F/R Ratios on Ch7. Date(s): 3 Feb 2011. Album by holl_ands. 1 - 25 of 25 Total. 2230 Visits.

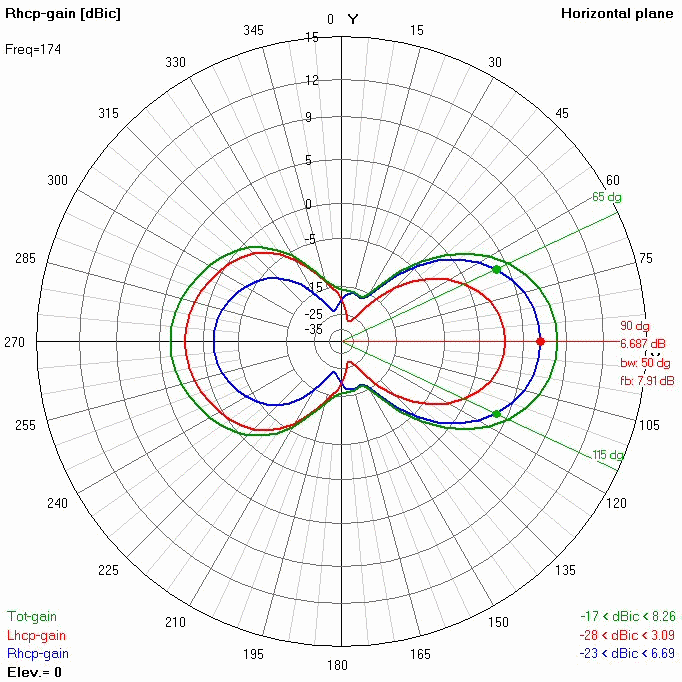

enlarge 67KB, 1024x966 1 Hi-VHF 8-El Cross Yagi with Dipole-Pair 3D View enlarge 255KB, 1024x828 2 Hi-VHF 8-El Cross Yagi with Dipole-Pair Front View [1 big box = 2.5-inches] enlarge 146KB, 1152x547 3 Hi-VHF 8-El Cross Yagi with Dipole-Pair Top View [1 big box = 12.5-inches] enlarge 174KB, 1024x686 4 Hi-VHF 8-El Cross Yagi with Dipole-Pair Hi-VHF TOTAL Raw Gain drops off on Ch10-13 enlarge 170KB, 1024x686 5 Hi-VHF 8-El Cross Yagi with Dipole-Pair Hi-VHF SWR (75-ohms) Under 2.7 enlarge 151KB, 1024x686 6 Hi-VHF 8-El Cross Yagi with Dipole-Pair Hi-VHF Impedance enlarge 311KB, 1024x1024 7 Hi-VHF 8-El Cross Yagi with Dipole-Pair Azimuthal Patterns at 174 MHz enlarge 317KB, 1024x1024 8 Hi-VHF 8-El Cross Yagi with Dipole-Pair Azimuthal Patterns at 180 MHz enlarge 317KB, 1024x1024 9 Hi-VHF 8-El Cross Yagi with Dipole-Pair Azimuthal Patterns at 186 MHz enlarge 317KB, 1024x1024 10 Hi-VHF 8-El Cross Yagi with Dipole-Pair Azimuthal Patterns at 192 MHz enlarge 318KB, 1024x1024 11 Hi-VHF 8-El Cross Yagi with Dipole-Pair Azimuthal Patterns at 198 MHz enlarge 316KB, 1024x1024 12 Hi-VHF 8-El Cross Yagi with Dipole-Pair Azimuthal Patterns at 204 MHz enlarge 307KB, 1024x1024 13 Hi-VHF 8-El Cross Yagi with Dipole-Pair Azimuthal Patterns at 210 MHz enlarge 306KB, 1024x1024 14 Hi-VHF 8-El Cross Yagi with Dipole-Pair Azimuthal Patterns at 216 MHz enlarge 124KB, 1152x457 15 Hi-VHF 8-El Cross Yagi with Dipole-Pair Side View [1 big box = 12.5-inches] enlarge 318KB, 1024x1024 16 Hi-VHF 8-El Cross Yagi with Dipole-Pair Circular Polarization Patterns at 174 MHz enlarge 317KB, 1024x1024 17 Hi-VHF 8-El Cross Yagi with Dipole-Pair Circular Polarization Patterns at 180 MHz enlarge 312KB, 1024x1024 18 Hi-VHF 8-El Cross Yagi with Dipole-Pair Circular Polarization Patterns at 186 MHz enlarge 315KB, 1024x1024 19 Hi-VHF 8-El Cross Yagi with Dipole-Pair Circular Polarization Patterns at 192 MHz enlarge 317KB, 1024x1024 20 Hi-VHF 8-El Cross Yagi with Dipole-Pair Circular Polarization Patterns at 198 MHz enlarge 316KB, 1024x1024 21 Hi-VHF 8-El Cross Yagi with Dipole-Pair Circular Polarization Patterns at 204 MHz enlarge 317KB, 1024x1024 22 Hi-VHF 8-El Cross Yagi with Dipole-Pair Circular Polarization Patterns at 210 MHz enlarge 303KB, 1024x1024 23 Hi-VHF 8-El Cross Yagi with Dipole-Pair Circular Polarization Patterns at 216 MHz enlarge 222KB, 1024x1024 24 Hi-VHF 8-El Cross Yagi with Dipole-Pair Circular Polarization Patterns - Ani-Gif enlarge 34KB, 791x1024 25 Hi-VHF 8-El Cross Yagi with Dipole-Pair 4nec2 File
