Hi-VHF Crossed FD's - 2TL=QWL+HWL Hi-VHF Crossed Folded Dipoles (FD's) Yagi [Coincident, NO Offset] fed by two Unequal Transmission Lines, Quarter-Wavelength and Half-Wavelength long respectively to provide requisite 90-deg phase shift between FD's for Right Hand Circular Polarization (RHCP). Poor Cross Polarization Loss on higher Hi-VHF channels and lack of LHCP suppression (Multipath) from REAR. Date(s): 4 Feb 2012. Album by holl_ands. 1 - 25 of 25 Total. 2247 Visits.

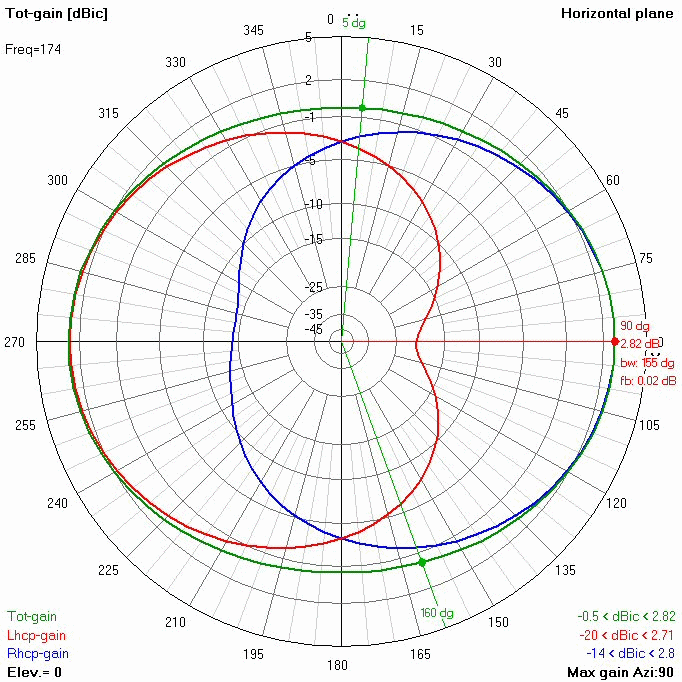

enlarge 59KB, 699x1024 1 Hi-VHF Cross FD's - 2TL=QWL+HWL 3D View enlarge 310KB, 1024x977 2 Hi-VHF Cross FD's - 2TL=QWL+HWL Front View [1 big box = 2.5-inches] enlarge 71KB, 231x1024 3 Hi-VHF Cross FD's - 2TL=QWL+HWL Top View [1 big box = 2.5-inches] enlarge 150KB, 1024x686 4 Hi-VHF Cross FD's - 2TL=QWL+HWL Hi-VHF TOTAL Raw Gain enlarge 193KB, 1024x686 5 Hi-VHF Cross FD's - 2TL=QWL+HWL Hi-VHF SWR (300-ohms) Under 1.8 enlarge 141KB, 1024x686 6 Hi-VHF Cross FD's - 2TL=QWL+HWL Hi-VHF Impedance enlarge 344KB, 1024x1024 7 Hi-VHF Cross FD's - 2TL=QWL+HWL Azimuthal Patterns at 174 MHz enlarge 332KB, 1024x1024 8 Hi-VHF Cross FD's - 2TL=QWL+HWL Azimuthal Patterns at 180 MHz enlarge 343KB, 1024x1024 9 Hi-VHF Cross FD's - 2TL=QWL+HWL Azimuthal Patterns at 186 MHz enlarge 341KB, 1024x1024 10 Hi-VHF Cross FD's - 2TL=QWL+HWL Azimuthal Patterns at 192 MHz enlarge 336KB, 1024x1024 11 Hi-VHF Cross FD's - 2TL=QWL+HWL Azimuthal Patterns at 198 MHz enlarge 334KB, 1024x1024 12 Hi-VHF Cross FD's - 2TL=QWL+HWL Azimuthal Patterns at 204 MHz enlarge 334KB, 1024x1024 13 Hi-VHF Cross FD's - 2TL=QWL+HWL Azimuthal Patterns at 210 MHz enlarge 340KB, 1024x1024 14 Hi-VHF Cross FD's - 2TL=QWL+HWL Azimuthal Patterns at 216 MHz enlarge 73KB, 213x1024 15 Hi-VHF Cross FD's - 2TL=QWL+HWL Side View [1 big box = 2.5-inches] enlarge 333KB, 1024x1024 16 Hi-VHF Cross FD's - 2TL=QWL+HWL Circular Polarization Patterns at 174 MHz enlarge 329KB, 1024x1024 17 Hi-VHF Cross FD's - 2TL=QWL+HWL Circular Polarization Patterns at 180 MHz enlarge 331KB, 1024x1024 18 Hi-VHF Cross FD's - 2TL=QWL+HWL Circular Polarization Patterns at 186 MHz enlarge 329KB, 1024x1024 19 Hi-VHF Cross FD's - 2TL=QWL+HWL Circular Polarization Patterns at 192 MHz enlarge 328KB, 1024x1024 20 Hi-VHF Cross FD's - 2TL=QWL+HWL Circular Polarization Patterns at 198 MHz enlarge 330KB, 1024x1024 21 Hi-VHF Cross FD's - 2TL=QWL+HWL Circular Polarization Patterns at 204 MHz enlarge 331KB, 1024x1024 22 Hi-VHF Cross FD's - 2TL=QWL+HWL Circular Polarization Patterns at 210 MHz enlarge 333KB, 1024x1024 23 Hi-VHF Cross FD's - 2TL=QWL+HWL Circular Polarization Patterns at 216 MHz enlarge 372KB, 1024x1024 24 Hi-VHF Cross FD's - 2TL=QWL+HWL Circular Polarization Patterns - Ani-Gif enlarge 29KB, 791x1024 25 Hi-VHF Cross FD's - 2TL=QWL+HWL 4nec2 File
