1899 Krag 30-40 Carbine
Model 1899 Krag (Caliber 30-40) Carbine Serial # 341336
(Mfg by Springfield in 1901)

Caliber: .......................  ".30 U.S." or ".30 Government", more common designation ".30-40" (denoting .30 caliber backed with 40 grains of smokeless powder)
Rifling & Twist: ............. 4 Groove, Enfield, Right Hand Twist, 1 turn in 10"
Barrel Length: .............. 22 in. (559mm)
Overall Length: ............ 40.9 in. (1039mm)
Weight: ....................... 8.0 lbs. (3.66kg)
Magazine Capacity: ....... 5 rounds, loaded with chargers
Magazine Type ............. Side loading box
Magazine Capacity: ....... 5 rounds, loaded with chargers
Total Qty Mfg ............... 35,954 (Estimated from William Brophy calculations)
1901 Qty Mfg ............... 10,801 (using 1901 sight - estimated from William Brophy calculations)


"Please leave comments at bottom of album pages"
Date(s): January 29, 2006. Album by Badger. Photos by Badger. 1 - 33 of 33 Total. 2466 Visits.
Start Slideshow
Enlarge photo 1
1
Model 1899 Krag (Caliber 30-40) Carbine Serial # 341336 (Mfg in 1901)

Enlarge photo 2
2
Type 4A Carbine Stock with faint marking where original Cartouche may have been. Has -P- inspectors mark under stock wrist

Enlarge photo 3
3
Manufactured in 1901

Enlarge photo 4
4
-C- Marked Carbine Rear 1901 (Type 1) Sight

Enlarge photo 5
5
-C- Marked Carbine Rear 1901 (Type 1) Sight

Enlarge photo 6
6
-C- Marked Carbine Rear 1901 (Type 1) Sight Ramp & Base

Enlarge photo 7
7
-C- Marked Carbine Rear 1901 (Type 1) Sight

Enlarge photo 8
8
-C- Marked Carbine Rear 1901 (Type 1) Sight

Enlarge photo 9
9
Front (Type 1) Carbine Sight. Unable to find -C- mark stamp. May be hidden by post base?

Enlarge photo 10
10
22 inch (type 2) carbine barrel

Enlarge photo 11
11
Small (aged wood) chip near top of butt tang. Faint marking where original Cartouche may have been. -P- inspectors mark under stock wrist

Enlarge photo 12
12
Bolt CLOSED and 5 round magazine CLOSED

Enlarge photo 13
13
Bolt CLOSED and 5 round magazine OPEN

Enlarge photo 14
14
Model 1899 Krag (Caliber 30-40) Carbine Serial # 341336 (Mfg in 1901)

Enlarge photo 15
15
Bolt CLOSED and 5 round magazine CLOSED

Enlarge photo 16
16
Bolt CLOSED and 5 round magazine CLOSED

Enlarge photo 17
17
Bolt CLOSED and 5 round magazine OPEN

Enlarge photo 18
18
Bolt OPEN and 5 round magazine OPEN

Enlarge photo 19
19
Bolt OPEN and 5 round magazine CLOSED

Enlarge photo 20
20
Bolt OPEN and 5 round magazine CLOSED

Enlarge photo 21
21
Bolt OPEN and 5 round magazine OPEN

Enlarge photo 22
22
Unknown filled-in butt stock markings. Maybe rack numbers?

Enlarge photo 23
23
Unknown filled-in butt stock markings. Maybe rack numbers?

Enlarge photo 24
24
Type 8 Handguard (Model 1902) & 1901 rear sight

Enlarge photo 25
25
Type 8 Handguard (Model 1902). -U- on barrel band is UP.

Enlarge photo 26
26
22 inch (type 2) carbine barrel

Enlarge photo 27
27
Front (Type 1) Carbine Sight

Visible small 'C' marking on blade part of sight.


Enlarge photo 28
28
Type 4A Stock with Type 8 Handguard (Model 1902) & 1901 rear sight

Enlarge photo 29
29
-P- Proof Mark and Inspector No. 30 or 80?

Enlarge photo 30
30
Frankford Arsenal 1909 ammo bandoleer c/w 30-40 Krag ammo

Enlarge photo 31
31
Frankford Arsenal 1909 ammo bandoleer c/w 30-40 Krag ammo

Enlarge photo 32
32
Frankford Arsenal 1909 ammo bandoleer c/w 30-40 Krag ammo

Enlarge photo 33
33

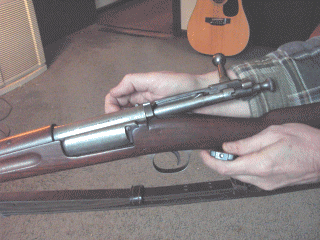

One Handed Krag Bolt Removal !!! (Picture courtesy of Parashooter)
